Inne C2P Paris

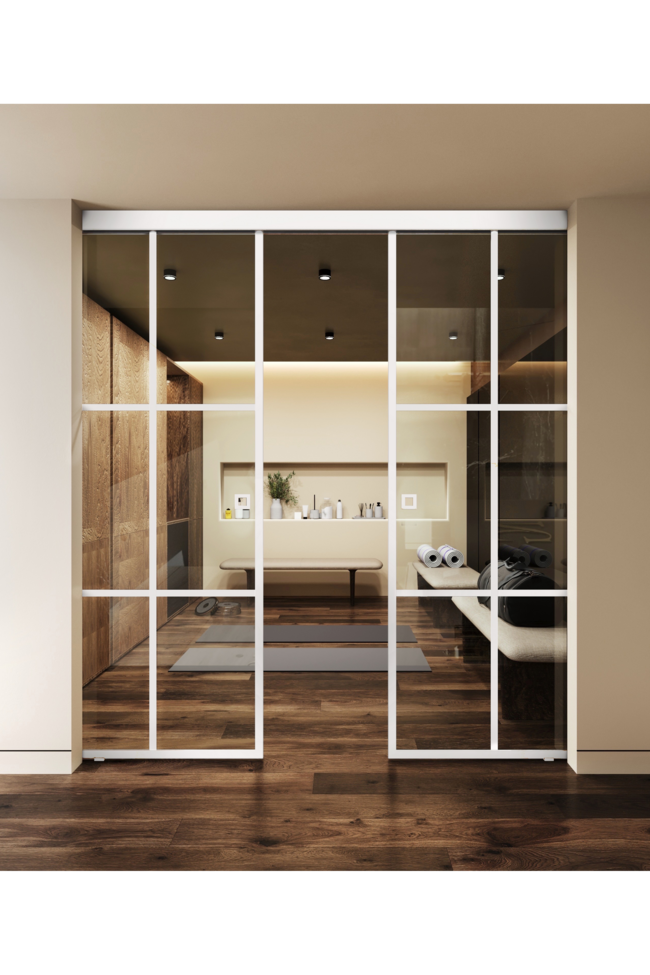

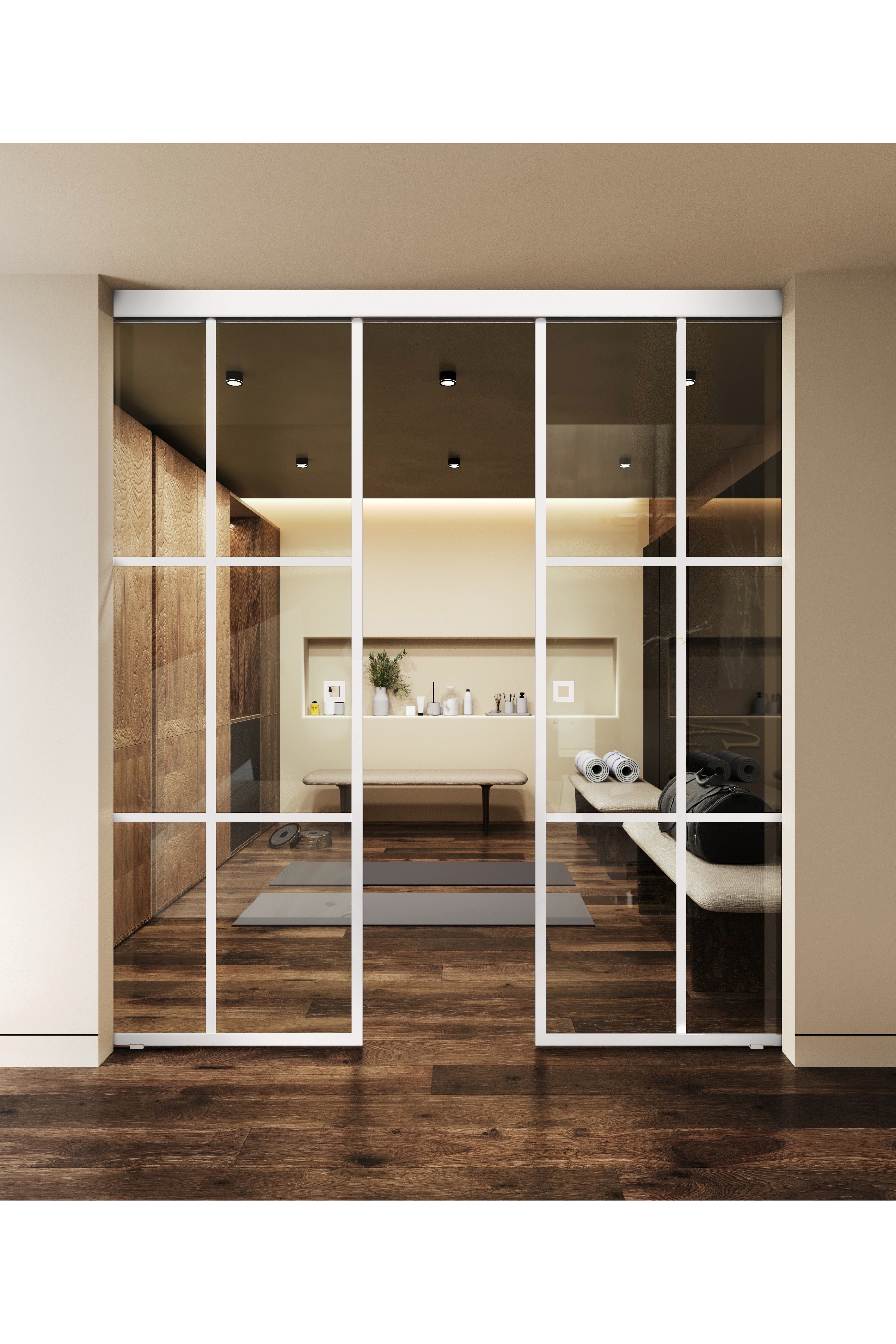

Ceiling mounted double sliding doors with soft closing
The sliding double door glass wall consists of two sliding door panels and a sliding mechanism mounted to the building wall above the doorway. Sliding door fixture takes up very little space in the room, a quality sliding mechanism and a floor guide fitting provides a smooth and safe door movement. The doors are equipped with soft closing mechanism which cushions the closing and gently pulls the door into position.
The sliding rail profile is fixed to the ceiling. The sliding mechanism is affixed to the top of both door panels before being mounted on the sliding profile. The sliding rail profile is covered from both sides of the enclosure.
20 Working days
20 year warranty
The white (RAL 9016), black (RAL 9005), Sand (RAL 1019), Mocha (RAL 8025) and Cocoa (RAL 8019) surface treatment options are manufactured by powder coating. The fittings used in the product, are made of painted brass alloy.
The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. Clear, Grey, Brown and Superclear are smooth surfaced and transparent panels Reeded, Satin, Brownsatin, Greysatin and Superclear satin panels are not fully transparent, details cannot be made out through the panel. Reeded is textured on one side and smooth on the other side. One side of the satin panels is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.

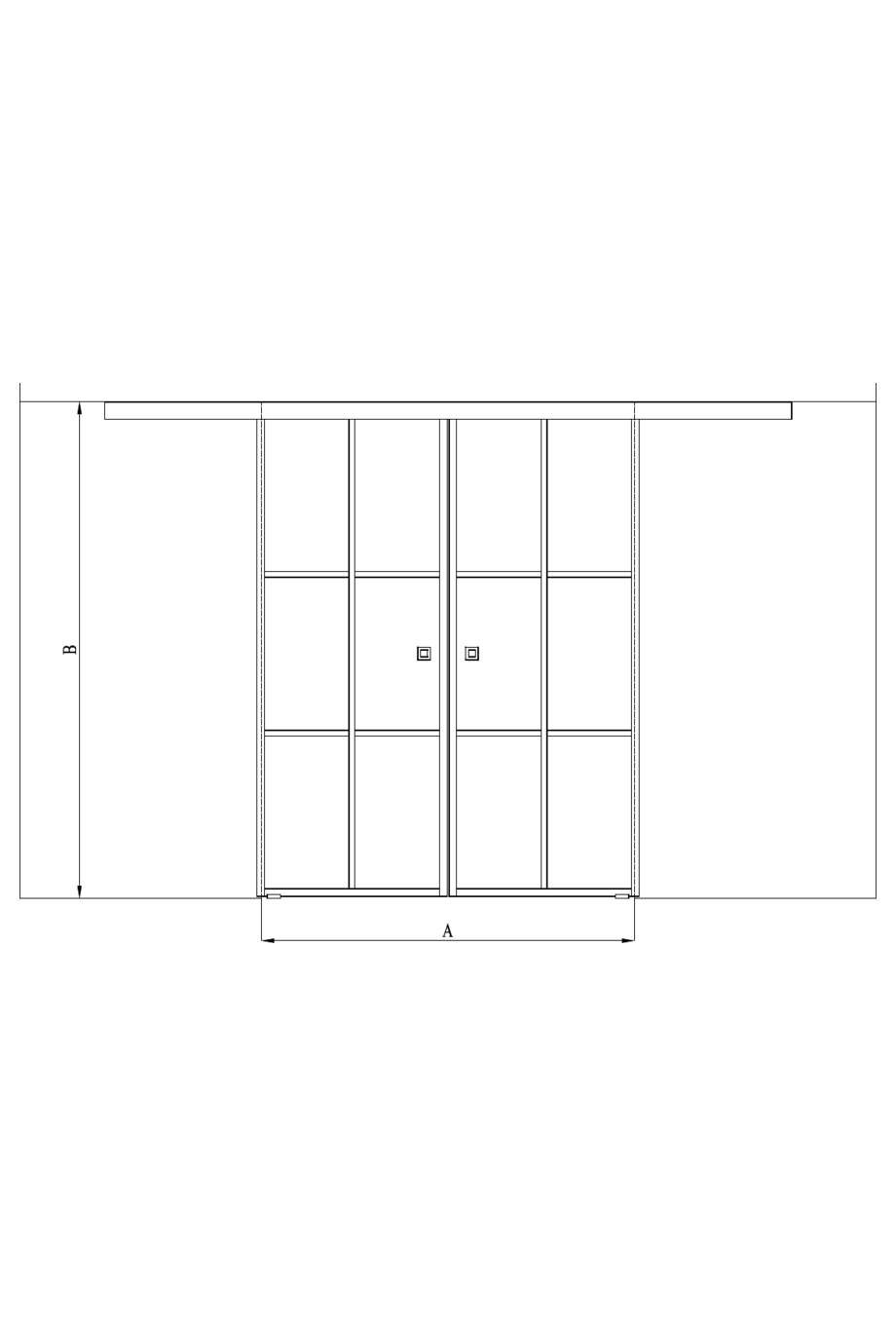

The sliding door is always manufactured according to custom dimensions. When ordering, enter actual width and height of the doorway. The maximal size of doorway is 2000x2500. It is recommended that the width of the door should always be at least Height/3.
Product size
.:
Select handle
Product
Product code
Price
1
Inne C2P Paris
Product code
C2P-61-00
Price
1820.00 €
2
Door A
White/Transparent=725 x 1900
Product code
765 61 0000
Price
0.00 €
3
Door B
White/Transparent=725 x 1900
Product code
765 61 0000
Price
0.00 €
4
Paris-frame
Product code
703 6L 0000
Price
0.00 €
5
TOTAL
Product code
Price
1820.00 €
.:
